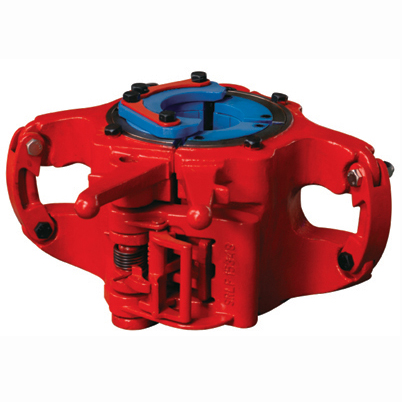

Y Series Slip Type Elevator
2014-8-19 Browse:1259times
The slip type elevator is an indispensable tool in holding and hoisting drilling pipes, casing and tubing in the oil drilling and well tripping operation. It’s especially suitable for the hoisting of integrated tubing sub, integral joint casing and electric submersible pump column.
Size |
Rated Cap. |
||
mm(in) |
kN |
Short Tons |
|
HYT |
60.3-88.9 (23/8-31/2) |
1350 |
150 |
YT |
33.4-88.9 (1.315-31/2) |
675 |
75 |
MYT |
33.4-73 (1.315-27/8) |
360 |
40 |
LYT |
26.7-52.4 (1.05-11/16) |
180 |
20 |
HYC |
88.9-139.7 (31/2-75/8) |
1800 |
200 |
MYC |
88.9-117.8 (31/2-7) |
1125 |
125 |
YC |
88.9-117.8 (31/2-7) |
675 |
75 |
