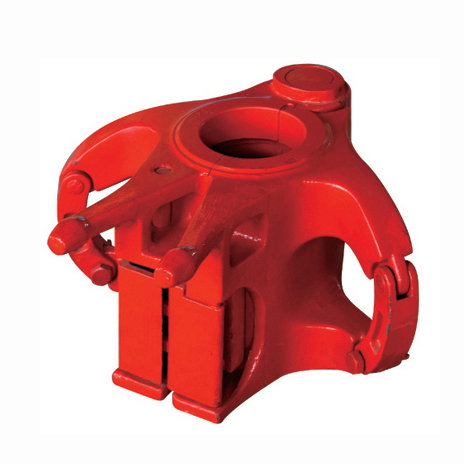

TA Type Elevator
2014-8-19 Browse:1220times
The TA Style Elevators are for use on tubing, casing and drill collars. The elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 tons to 150 tons and cover all size tubular up to 111/4".
Model |
Size(in) |
Rated Cap. （short tons） |
|||
DC |
Tubing |
Casing |
|||
NU |
EU |
||||
TA-35 |
27/8-31/8 |
1.05-27/8 |
1.05-27/8 |
/ |
35 |
TA-65 |
27/8-31/8 |
1.66-27/8 |
1.66-27/8 |
/ |
65 |
TA-100 |
31/8-51/4 |
23/8-5 |
23/8-41/2 |
/ |
100 |
TA-150 |
41/8-111/4 |
/ |
/ |
41/2-103/4 |
150 |
