QW Pneumatic Slips
2014-8-19 Browse:855times

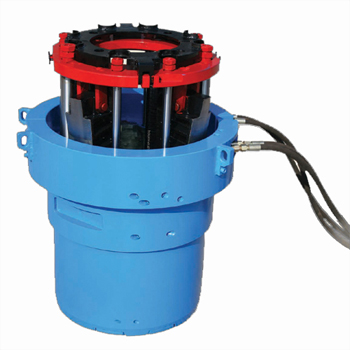

Model JSQWG casing air slips is an ideal too for handling casing by combining with hydraulic casing power tong.
Model |
JSQWG-205 (520) |
JSQWG-275 |
Suited for which rotary tables |
ZP205 ZP520 |
ZP275 |
Working pressure (psi) |
87-130 |
|
Effective clamping length |
16.1/2 |
|
Rated load (kN) |
2250 |
3000 |
Max. bore diameter(in) |
8.5/8 |
12.1/4 |
Clamping height(in) |
≤1.3/4 |
|
Extension height (mm) |
≤12 |
≤12.3/8 |
Applicable casing size |
4.1/2"-5.1/2" |
4.1/2"-9.5/8" |
size (in) |
Φ20.5X25.3/8 |
Φ27.5X24 |
Weight (Ib) |
1410 |
2094 |
