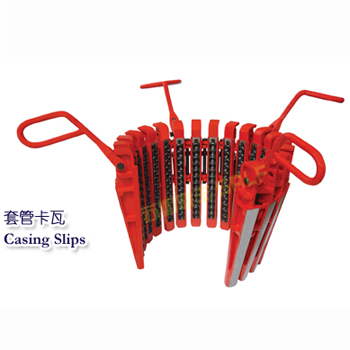

CMS Type Casing Slips
2014-8-19 Browse:1250times
Casing Slips Type CMS can accommodate casings from 4.1/2 to 30in (114.3 to 762mm). They are designed and manufactured according to API Spec 7K.
|
Casing OD |
in |
4.1/2-5 |
5.1/2-6 |
6.5/8 |
7 |
7.5/8 |
8.5/8 |
9.5/8 |
10.3/4 |
|
mm |
114.3-127 |
139.7-152.4 |
168.3 |
177.8 |
193.7 |
219.1 |
244.5 |
273.1 | |
|
Weight |
kg |
76 |
71 |
89 |
83.5 |
75 |
82 |
87 |
95 |
|
lb |
168 |
157 |
196 |
184 |
166 |
181 |
192 |
209 | |
|
Total No. of segments |
9 |
9 |
12 |
12 |
12 |
13 |
14 |
15 | |
|
Use in insert bowl No. |
API or No.3 |
No.2 | |||||||
|
Casing OD |
in |
11.3/4 |
13.3/8 |
16 |
18.5/8 |
20 |
24 |
26 |
30 |
|
mm |
298.5 |
339.7 |
406.4 |
473.1 |
508 |
609.6 |
660.4 |
762 | |
|
Weight |
kg |
118 |
117 |
140 |
166.5 |
174 |
201 |
220 |
248 |
|
lb |
260 |
258 |
308 |
367 |
383 |
443 |
486 |
546 | |
|
Total No. of segments |
17 |
18 |
21 |
25 |
26 |
30 |
33 |
37 | |
|
Use in insert bowl No. |
No.1 |
Match with relevant casing bushing | |||||||
