Type C/CHD Pneumatic Spiders
2014-8-19 Browse:1144times

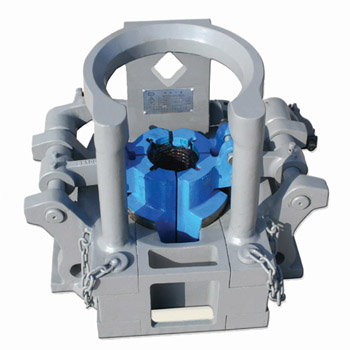

Type C/CHD Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repairing. This type of spider can accommodate pipe from 1.315 to 5 1/2 inch, the rated capacity of type C Spider is 80 tons, and the rated capacity of type CHD Spider is 120 tons.
Slip Body Size(in) |
Handle O.D |
Cylinder Working Pressure |
||||
C/80T |
CHD/120T |
|||||
mm |
in |
mm |
in |
MPa |
psi |
|
2 1/16 |
33.4 |
1.315 |
33.4 |
1.315 |
0.6-0.9 |
87-130 |
42.2 |
1.66 |
42.2 |
1.66 |
|||
48.3 |
1.9 |
48.3 |
1.9 |
|||
52.4 |
2 1/16 |
52.4 |
2 1/16 |
|||
3 1/2 |
60.3 |
2 3/8 |
60.3 |
2 3/8 |
||
73 |
2 7/8 |
73 |
2 7/8 |
|||
88.9 |
3 1/2 |
88.9 |
3 1/2 |
|||
4 1/2 |
88.9 |
3 1/2 |
88.9 |
3 1/2 |
||
101.6 |
4 |
101.6 |
4 |
|||
114.3 |
4 1/2 |
114.3 |
4 1/2 |
|||
5 |
127 |
5 |
127 |
5 |
||
5 1/2 |
139.7 |
5 1/2 |
139.7 |
5 1/2 |
||
