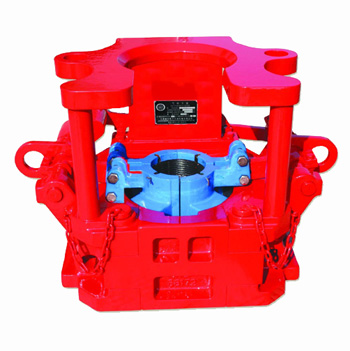

Type E Pneumatic Spiders
2014-8-19 Browse:1337times
Type E Pneumatic spiders are utilized to handle drill pipe and tubing in oil well repairing. This type of spider can accommodate pipe from 23/8 to 75/8 inch, the rated capacity is 175 tons.
Slip Body Size(in) |
Type |
Cylinder Work Pressure |
||
E/175Ton |
||||
Pipe Size |
||||
in |
mm |
MPa |
psi |
|
31/2 |
23/8 |
60.3 |
0.6-0.9 |
87-130 |
27/8 |
73 |
|||
31/2 |
88.9 |
|||
51/2 |
4 |
101.6 |
||
41/2 |
114.3 |
|||
5 |
127 |
|||
51/2 |
139.7 |
|||
7 |
61/4 |
158.8 |
||
65/8 |
168.3 |
|||
7 |
177.8 |
|||
75/8 |
75/8 |
193.7 |
||
